Working Principle:

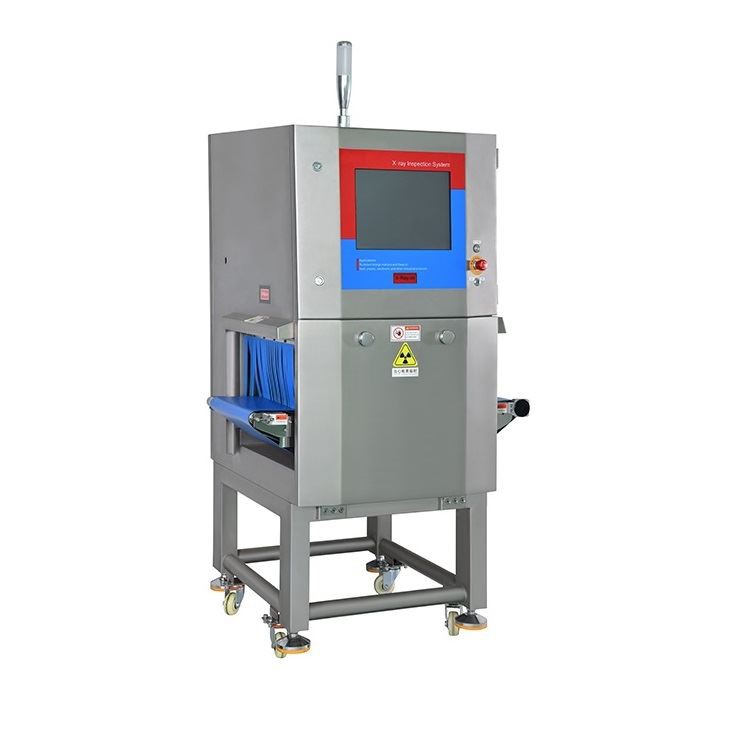

BTX-3500 is an Food X-ray foreign matters detector that uses the penetrating power of X-rays. The Bestar team uses AI intelligent algorithms, integrates computers, digital signal processing, and integrates optoelectronic technology to automatically detect and remove metal and non-metallic foreign bodies (metal, stone, glass, plastic, bone, etc.) in food that cannot be seen by the naked eye. In addition, the X-ray machine can also perform product missing detection, damaged packaging detection, and weight detection.
Technical parameter:
Model: BTX-3500
Application: Designed for box, aluminum foil bag, plastic and tray packing.
Best Inspection Ability | 0.6mm (SUS304 ball); Fe: 0.6mm,1.0mm( stone) 1.5mm (Glass Ball) 1.5mm (Glass Ball)1.2 mm(Ceramic Ball) |
X-ray tube | MAX. 100kV, 150W |
Max Detecting Height | 200mm |
Max Detecting Width | 300mm |
Conveyor Parameter | Speed |
Width | 350mm |
Max Height | 160mm |
Max Load | 15kg |
Screen | Full-color TFT 15" Touch Screen |
O/S | Windows XP Professional |
Connectivity | LAN port, USB port |
x ray metal detector food industry Management | Complete product log |
Parameter Adjustment | Auto learning/Manual setting |
Image Management | Auto image save/print/analyses |
Power Supply | 220V, AC, 50/60Hz |
Body Material | SUS304 |
Purification | Easy to wash |
Cooling method | Air conditioned cooling |
Operation temperature | 0-40℃ |
Operation humidity | 30-90% |
X-ray emissions | < 1 microsievert per hou |
Food x ray detector applicable objects:
- Food: powder, liquid, bottled, canned, etc.
- Medicine: raw materials, tablets, capsules, liquid medicine, etc.
- Chemical industry: rubber and plastic raw material costs and semi-finished products
- Clothing, shoemaking, toys, textiles, handbags, luggage, etc.

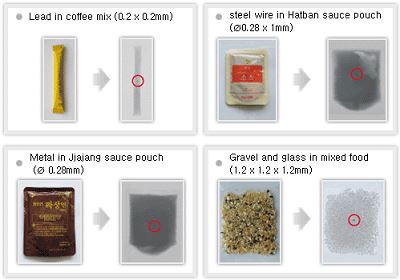

X -ray detector image(sample, only for your reference)
More functions of food x ray detector
How to food x ray detector work?
FQA:
Q:What's your main products?
A:Our main products include food metal detector and food x-ray detector machine for contaminants inspection, checkweigher for weight check
Q:What's the warranty of your machines?
A:One year warranty and life-time service
Q:How about your after-sales policy?
A:Timely, efficient, customer first
(1)One-year warranty (life-time service)
(2)Online support and professional video guidance
(3)Complete training course, either in meidele factory or through the internet
Q: If x ray metal detector food industry is harmful for body?
A: No.
Food X ray detector generates X-rays through equipment and uses the penetration ability of X-rays to detect metal foreign bodies mixed in products and non-metallic foreign bodies with high density. In addition, X-ray foreign body detector can also detect product missing, damaged packaging, and weight. Principle of X-ray foreign body detector: It mainly uses the penetration of X-rays, combines photoelectric technology, integrates computer, digital signal processing and other technologies, and distinguishes, extracts and distinguishes image information through vision and pattern recognition, and finally realizes foreign body processing. X-rays are irradiated on food and medicines, and the penetration degree of X-rays is measured with linear display detectors. Then use image processing technology to analyze the measured signals with high sensitivity to detect internal foreign bodies.
