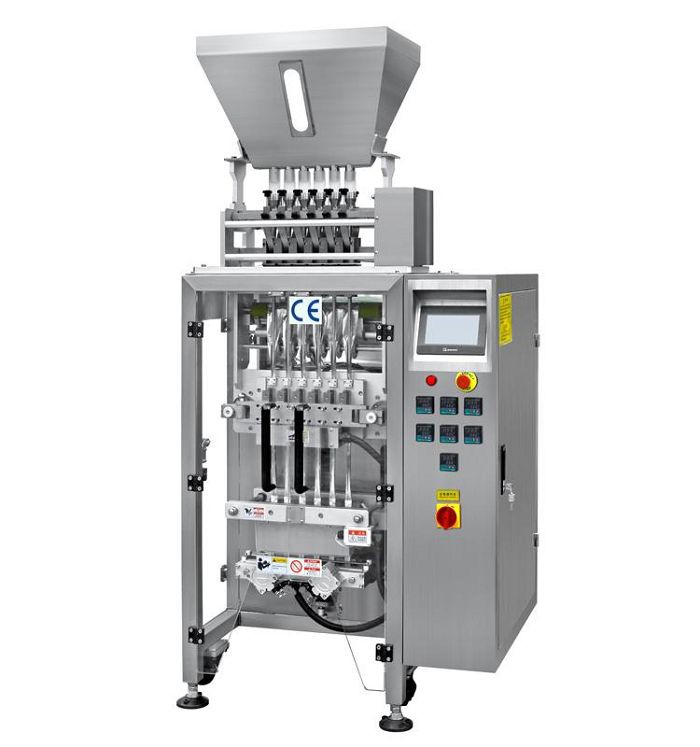

3 Lanes Pharma Granuels Vertical filling Packing Machine
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
1. Machine with advanced technology, beautiful appearance, reasonable structure, stable performance, precise operation, efficient and durable, easy to operate, energy saving and other diversified quality characteristics.
2. Set of measuring, bag making, filling, sealing, cutting, testing, coding, counting, transport and other processes in a fully automatic multi-functional packaging machine.
3. This machine is suitable for packing different kinds of materials like sugar, coffee granule, coffee powder, milk powder and liquid, etc.
4. Use manual man-machine interface and automatic detection and alarm system program for this machine.
5. Adopt imported PLC, cylinders, optics, touch screen, temperature controller, frequency converter, relays, servo motors, high quality power supply circuits.
6. Famous branch Servo motor for film pulling system.
7. PID temp. controller within 1 degree.
Multi-lanes vertical packing machine parameters(you can customize ):
Model | BT4L | BT6L | BT12L |
Bag length | 30-165mm | 30-165mm | 30-165mm |
Bag width | 12-90mm | 12-60mm | 13-35mm |
Max roll film width | 440mm | 440mm | 440mm |
Packing speed | 30-50bags/min/lane | 30-50bags/min/lane | 30-50bags/min/lane |
Air pressure | 0.65mpa | 0.65mpa | 0.65mpa |
Air consumption | 0.2m³/min | 0.2m³/min | 0.2m³/min |
Power supply | 220VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
Power | 2.0 KW | 2.0 KW | 2.5 KW |
Overall size | 1100*990*2100mm | 1100*990*2100mm | 1100*990*2100mm |
Net weight | 400 kg | 450 kg | 450 kg |
More Multi lanes Vertical Packing machine Description:
Application:
According to customer needs,the bag types can be changed: Three Side Seal ,Back Side Seal, Four Side Seal .Specical bag Seal as per requested
it's widely used in granuels filling and packing, such as sugar, coffe, salt, moisture resistant agent, cystal sugar, etc)
Certificate:

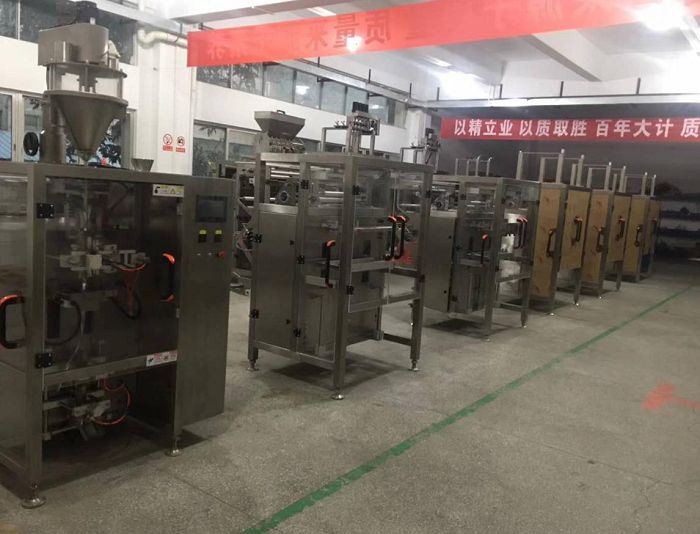

Factory:
Exibitions:
Dongguan Bestar Packing Machine After sales service:
1.Providing professional installation instructions and video of troubleshoot.
2.Providing machine control software updates and operation teaching in our factory.
3.Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4.Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.
5. Providing packaging solutions and testing material on machines, full refund if unsatisfied with the machine.
