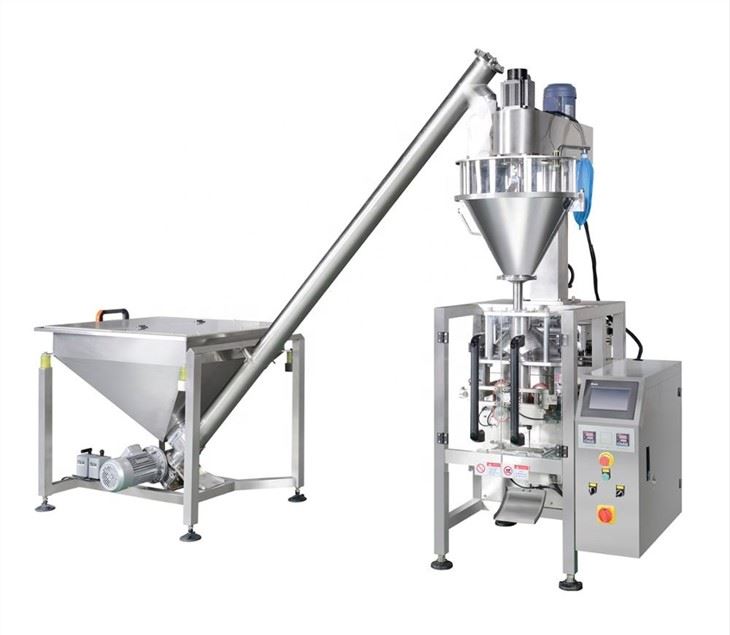

automatic vertical powder filling packing machine for 500g, 1kg

Parameters:

Model:  BTV450

Film width：Max.420mm

Film width Range(bag former) ：140-420mm

Bag Width: 65-200mm

Bag Length: 80-300mm（if make special order can do 320MM )

Film roll Diameter: Max.320mm

Packing rate:5-60bag/min

Measurment range:150-1500ml

Power:220V,50HZ, Single Phase

Machine size: (L)1217*(W)1015(H)1343

Features:

1.English and Chinese screen display ,operation is simple .

2:PLC computer system , function is more stable , adjustment any parameters not need stop machine. 3:It can stock ten dispose , simple to change variety.

4:Sever motor drawing film , position accurately.

5:Temperature independent control system ,precision get to±1℃.

6:Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material. 7:Packing type diversification , pillow sealing, standing type ,punching etc.

8:Bag–making , sealing, packing, print date in one operation.

9:Work circumstance quiet, low noise.

10:The machine adopt servo motor control, screw measuring , precision ±1﹪

11:Adjustment product weight without any tools.

12:Filling head can be changed , suitable for mix film and PE film .

Descriptions:

Application:

It is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder,spicy, washing powder,seasoning powder, etc

Bag samples:
