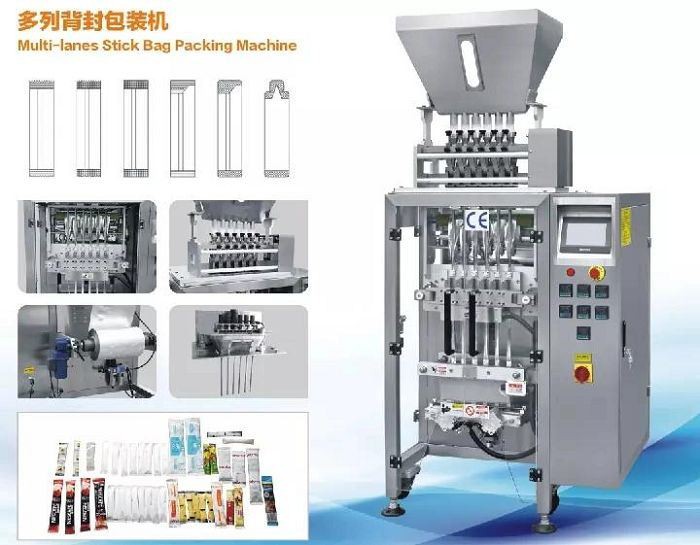

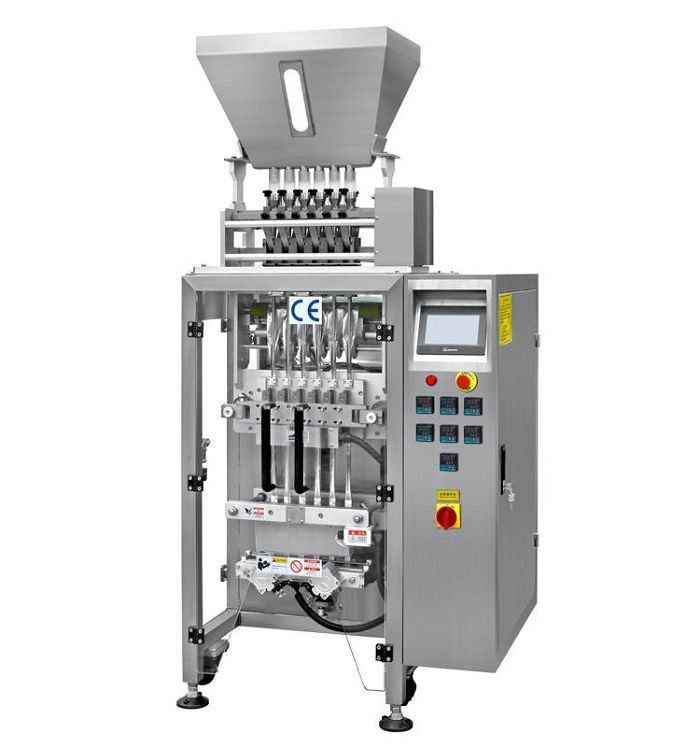

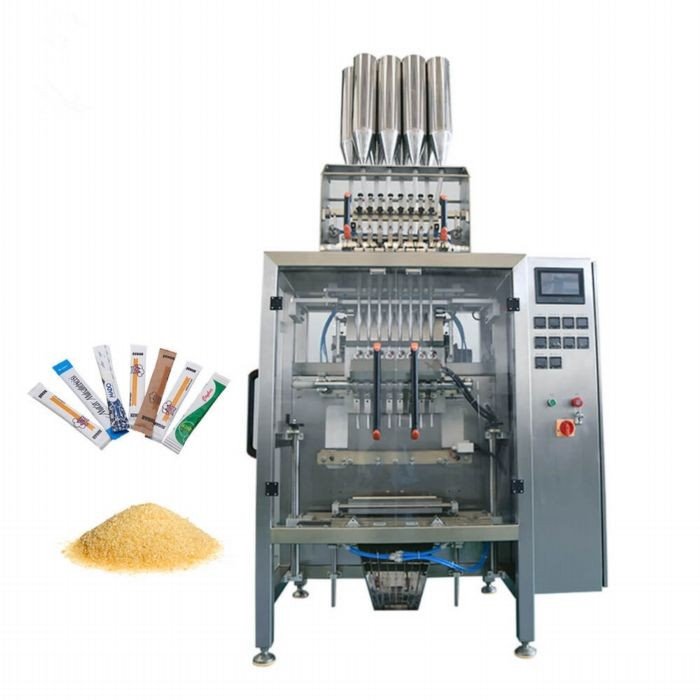

6 Multi-lanes Sachet Stick Vertical Filling and Packing Machine
Main Features
1. PLC control with stable reliable high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

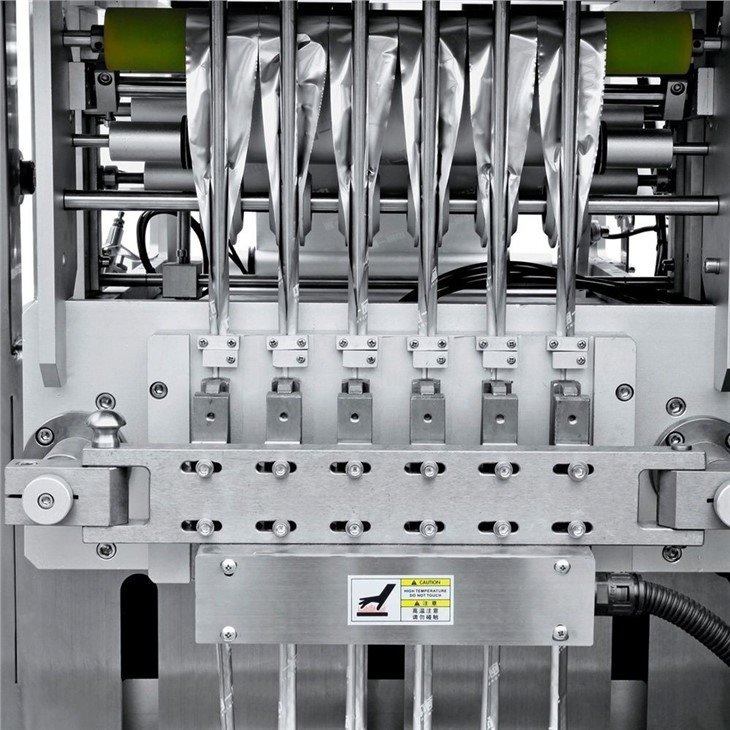

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
Multi-lanes vertical packing machine parameters:
Model | BT4L | BT6L | BT12L |
Bag length | 30-165mm | 30-165mm | 30-165mm |
Bag width | 12-90mm | 12-60mm | 13-35mm |
Max roll film width | 440mm | 440mm | 440mm |
Packing speed | 30-50bags/min/lane | 30-50bags/min/lane | 30-50bags/min/lane |
Air pressure | 0.65mpa | 0.65mpa | 0.65mpa |
Air consumption | 0.2m³/min | 0.2m³/min | 0.2m³/min |
Power supply | 220VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
Power | 2.0 KW | 2.0 KW | 2.5 KW |
Overall size | 1100*990*2100mm | 1100*990*2100mm | 1100*990*2100mm |
Net weight | 400 kg | 450 kg | 450 kg |
More 6 multi-lanes sachet stick vertical filling and packing machine
Description:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6 Multi-lanes sachet stick vertical filling and packing machine
Application:

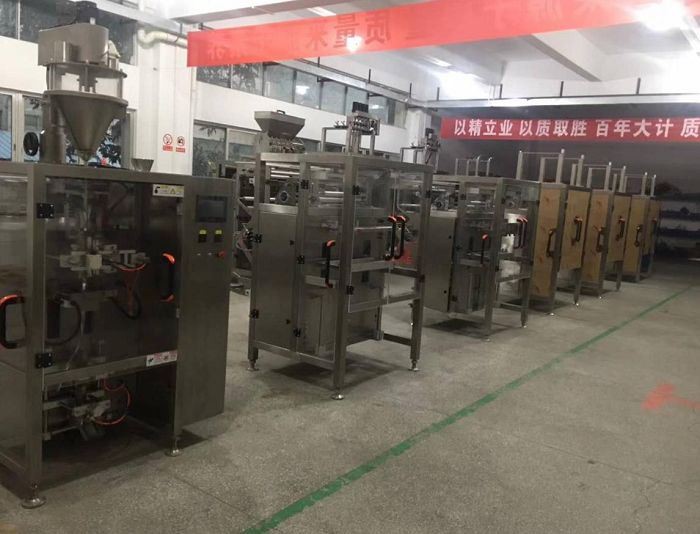

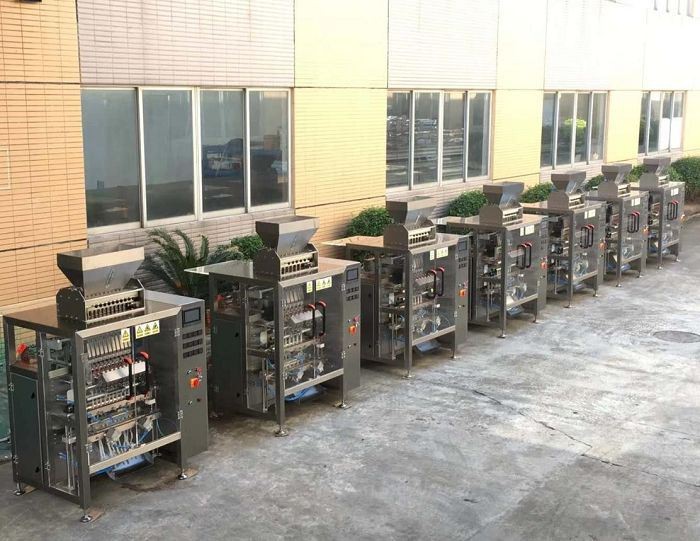

Factory:
Our Service and FAQ:
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than 8 years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 8 years, and we can provide better after-sales service.
