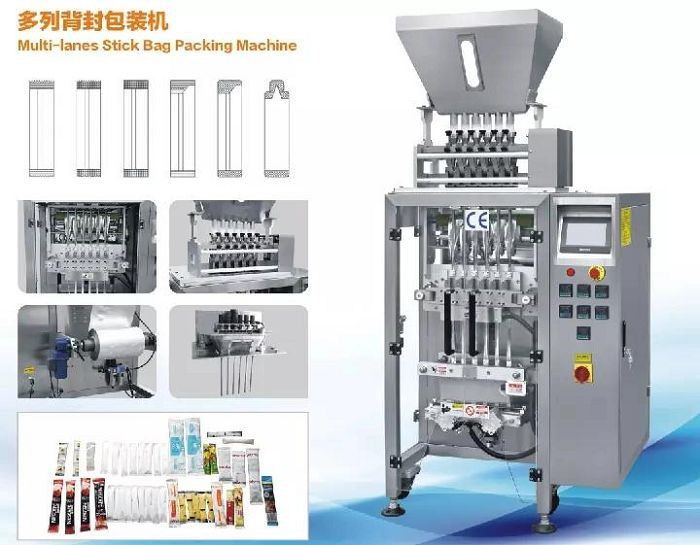

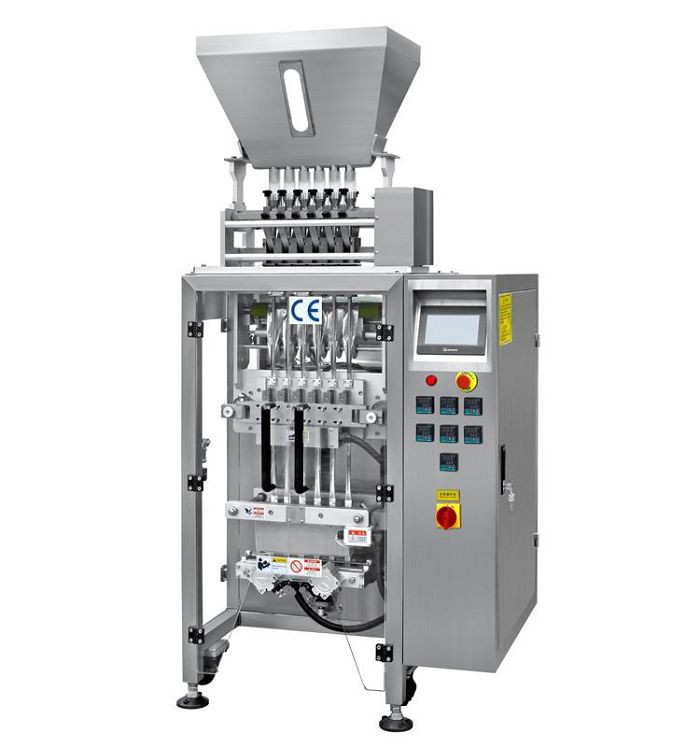

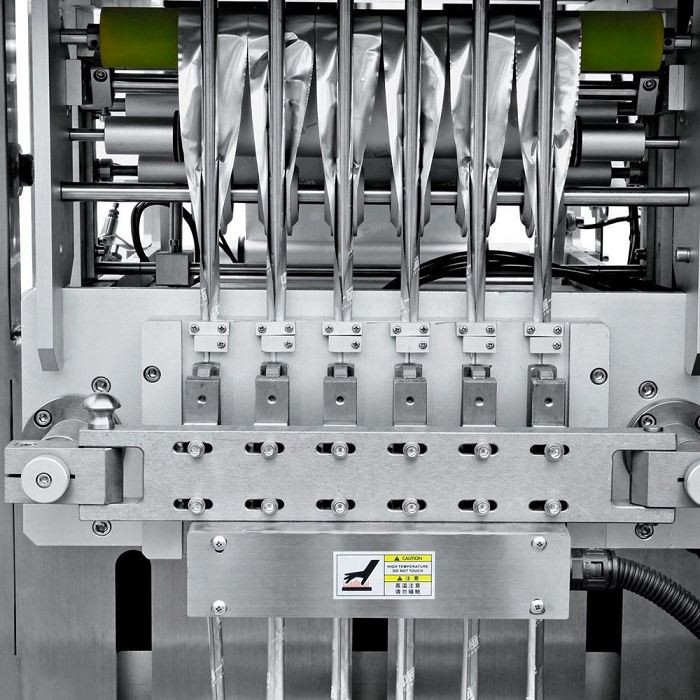

fast speed multi lanes Vertical Packing Machine for desiccant
Main Features:
1.Full material is 304 stainless steel
2.Heavy duty design suits for high speed operation
3.No waste of film design, no reserved film edge required
4.Motorized Roller type film dividing device
5.PLC & Touch screen HMI control
6.Guided servo motorized film pulling device integrated with horizontal seal
7.Individual servo auger dosing for each lane and automatic dosing range adjustment by PLC
8.Visible hopper with openable door
9.Intelligent PID temperature controller
10.Door open and machine stop interlock
11.No packaging film and machine stop interlock
Multi-lanes vertical packing machine parameters:
Model | BT4L | BT6L | BT12L |
Bag length | 30-165mm | 30-165mm | 30-165mm |
Bag width | 12-90mm | 12-60mm | 13-35mm |
Max roll film width | 440mm | 440mm | 440mm |
Packing speed | 30-50bags/min/lane | 30-50bags/min/lane | 30-50bags/min/lane |
Air pressure | 0.65mpa | 0.65mpa | 0.65mpa |
Air consumption | 0.2m³/min | 0.2m³/min | 0.2m³/min |
Power supply | 220VAC/50Hz | 220VAC/50Hz | 220VAC/50Hz |
Power | 2.0 KW | 2.0 KW | 2.5 KW |
Overall size | 1100*990*2100mm | 1100*990*2100mm | 1100*990*2100mm |
Net weight | 400 kg | 450 kg | 450 kg |
More Multi lanes Vertical Packing machine Description:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Application:
fast speed multilanes vertical filling, sealing, packing machine widely applied to pack powder(milk, flour, Sachet,coffe,pepper, seasoning,cement, etc)

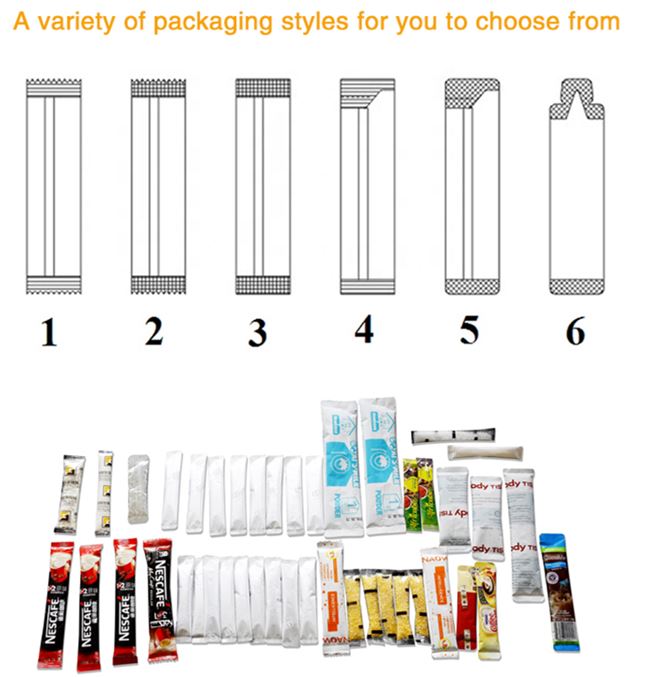

According to customer needs,the bag types can be changed: Three Side Seal ,Back Side Seal, Four Side Seal .Specical bag Seal as per requested
it's also widely used in granuels filling and packing, such as sugar, coffe, salt, moisture resistant agent, cystal sugar, etc)

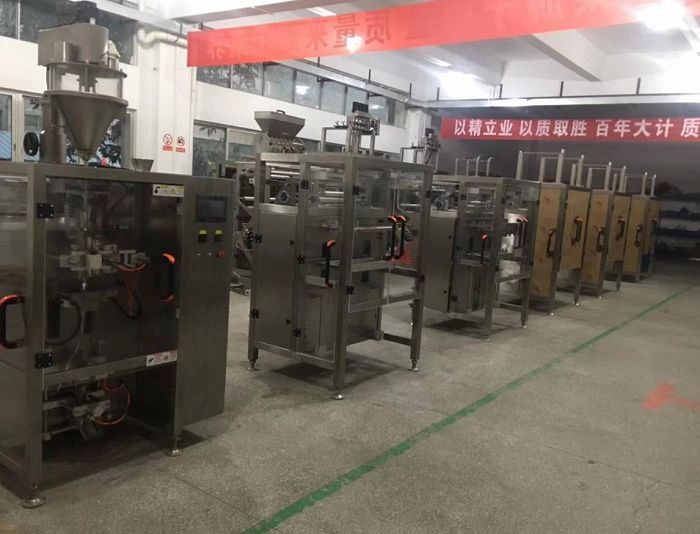

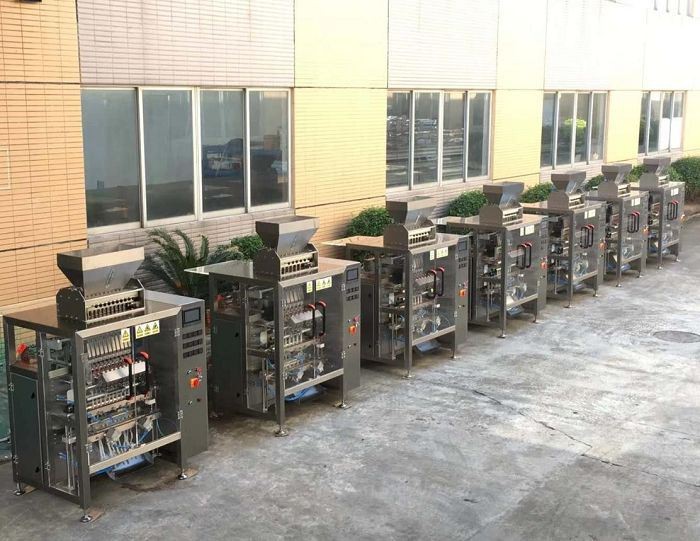

Factory:
Dongguan Bestar Packing Machine After sales service:
1.Providing professional installation instructions and video of troubleshoot.
2.Providing machine control software updates and operation teaching in our factory.
3.Two years free maintenance for touch screen,inverter,PLC, temperature controler,photoelectric sensor with freight prepaid.
4.Engineers available to service the machinery overseas, buyers pay 100 US dollars daily service fees and travel expenses.
5. Providing packaging solutions and testing material on machines, full refund if unsatisfied with the machine.
