Fast Multi-lanes Stick Vertical Packing Machine for liquid paste

PLC control with stable reliable high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

Send Inquiry

Details Video

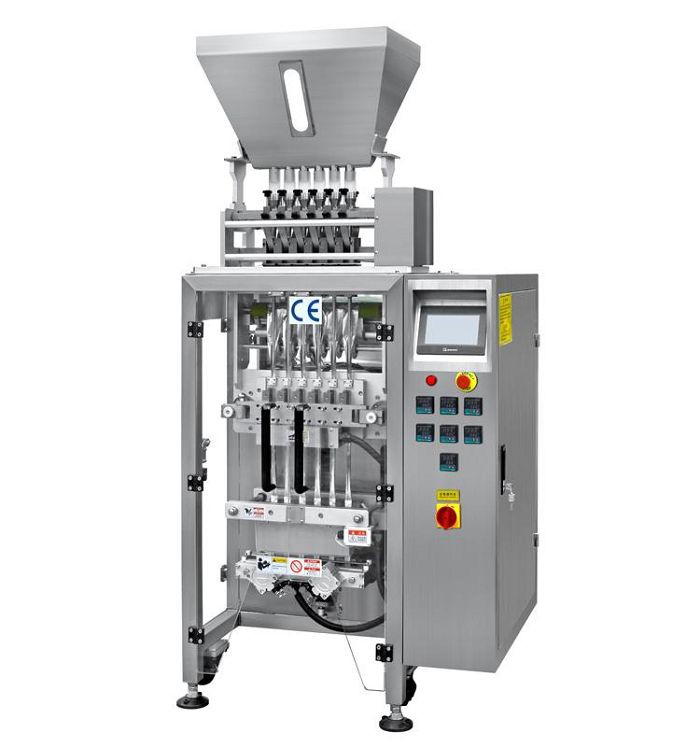

Multi-lanes Stick Vertical Packing Machine for liquid

Main Features

1. PLC control with stable reliable high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

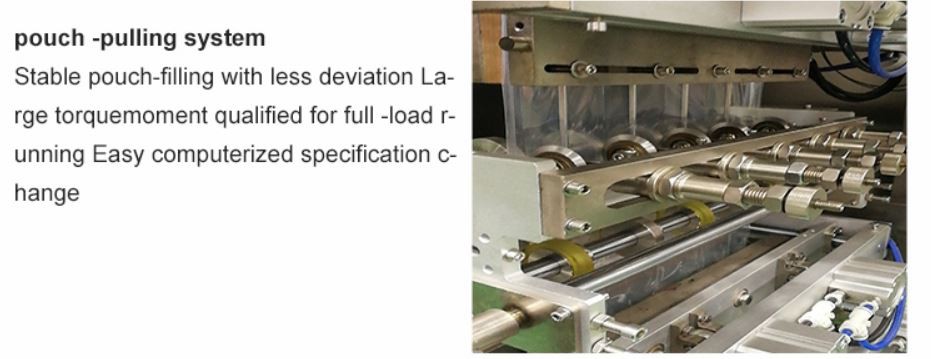

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

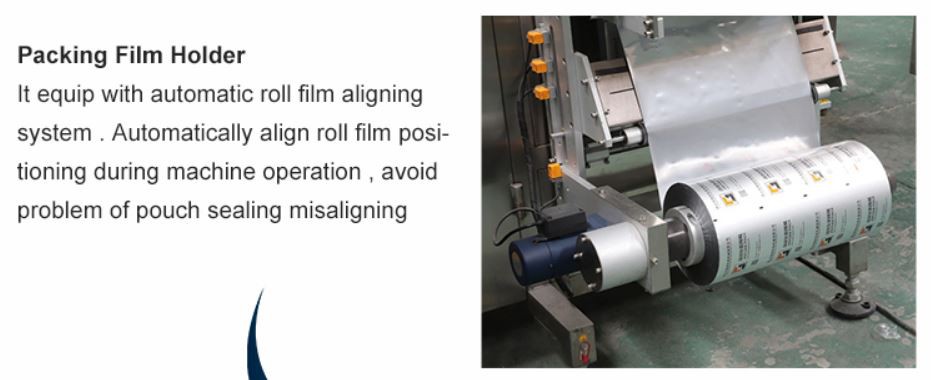

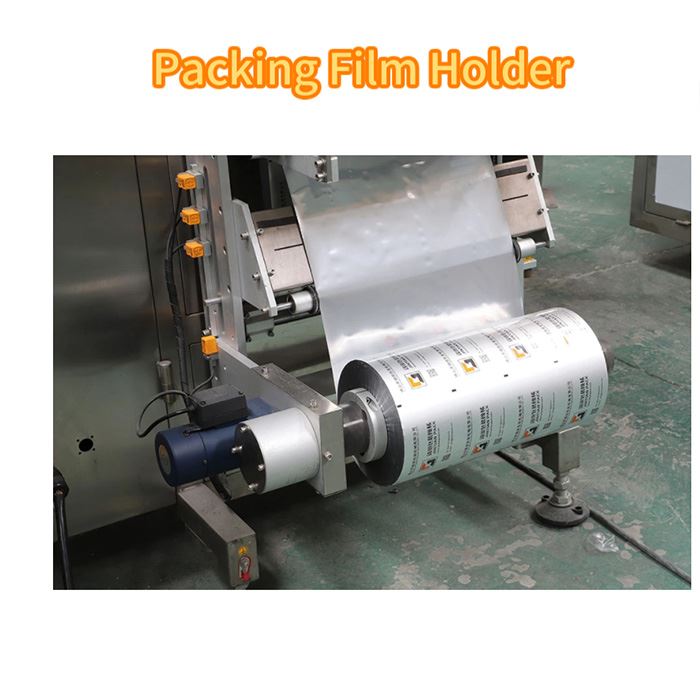

4. External film releasing mechanism: simpler and easier installation of packing film.

5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .

6. Close down type mechanism , defending powder into inside of machine.

Multi-lanes vertical packing machine parameters:

Model	BT-480S	BT-720S	BT-960S
Measuring	Piston Pump /Peristaltic pump
Bag Shape	Back Sealing/4 Sides Sealing/ Special bag type
Packing Speed	35-45 sticks/min/lane
Max Roll Film Width	480mm	720mm	960mm
Bag Length	55-120mm
Bag Width	30-60mm	30-90mm	30-120mm
Machine Dimension(LWH)	95014701750mm	115316541750mm	141516862130mm
Weight	300KG	400KG	500KG
Power	220V/380V,50/60HZ,2.8KVA	220V/380V,50/60HZ,4.1KVA	220V/380V,50/60HZ,5.5KVA

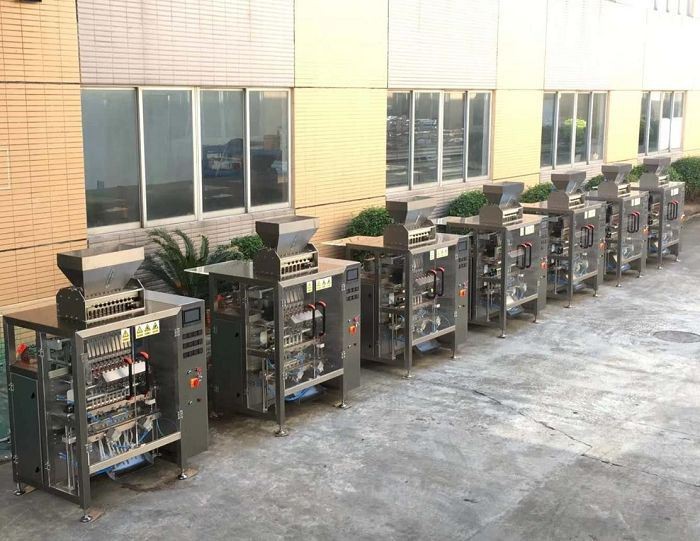

More multi-lanes stick bag packing machine

Description:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

6).No waste of film design, no reserved film edge required

7)Motorized Roller type film dividing device

8)PLC & Touch screen HMI control

9)Guided servo motorized film pulling device integrated with horizontal seal

10)Individual servo auger dosing for each lane and automatic dosing range adjustment by PLC

11)Intelligent PID temperature controller

12).No packaging film and machine stop interlock

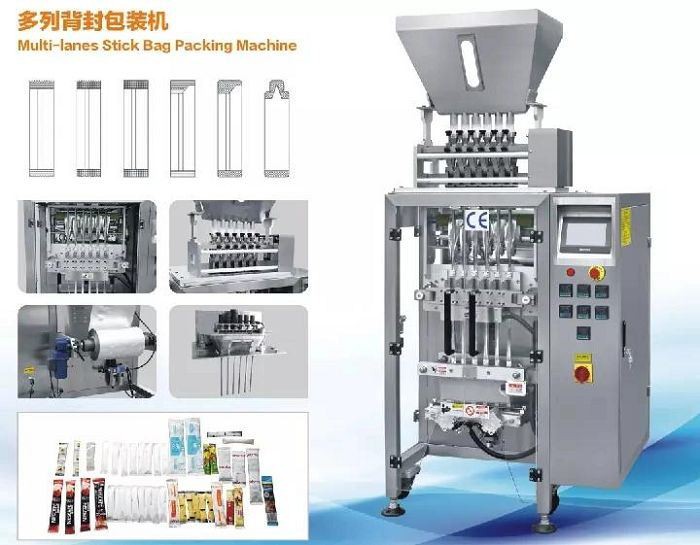

2(001)

3(001)

Application:

Multi-Lanes liquid Paste packaging machine is suitable for ketchup, tomato paste. cherry past , chocolate paste, sauce, chili sause, honey, peanut butter, mayonnaise, olive oil, soup , shampoo , handwashing fluid , liquid detergent ,etc.

According to customer needs,the bag types can be changed: Three Side Seal ,Back Side Seal, Four Side Seal .Specical bag Seal as per requested
