Product Information

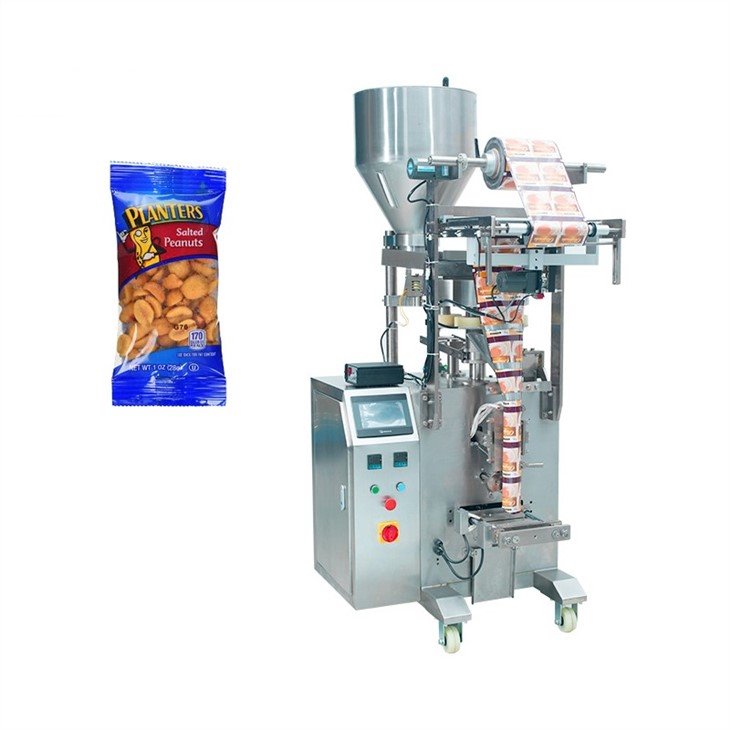

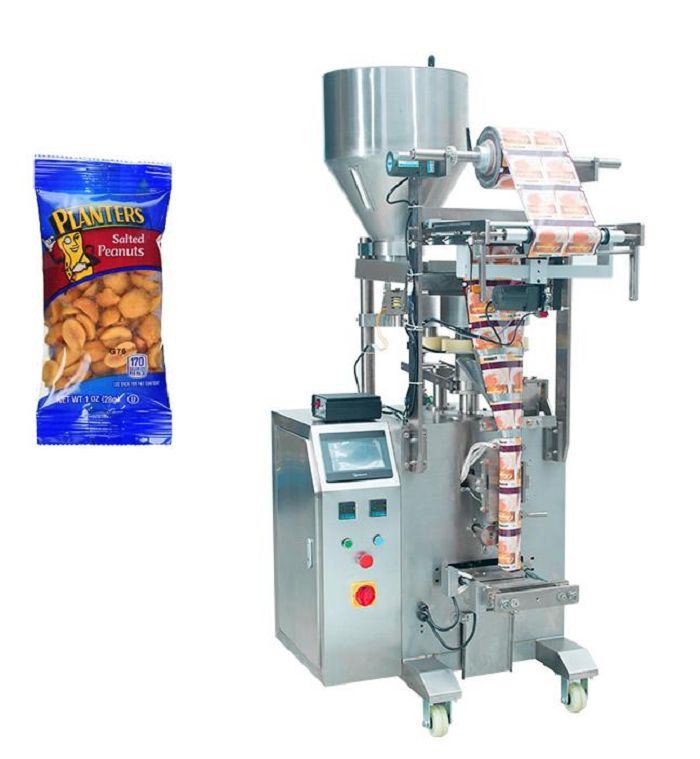

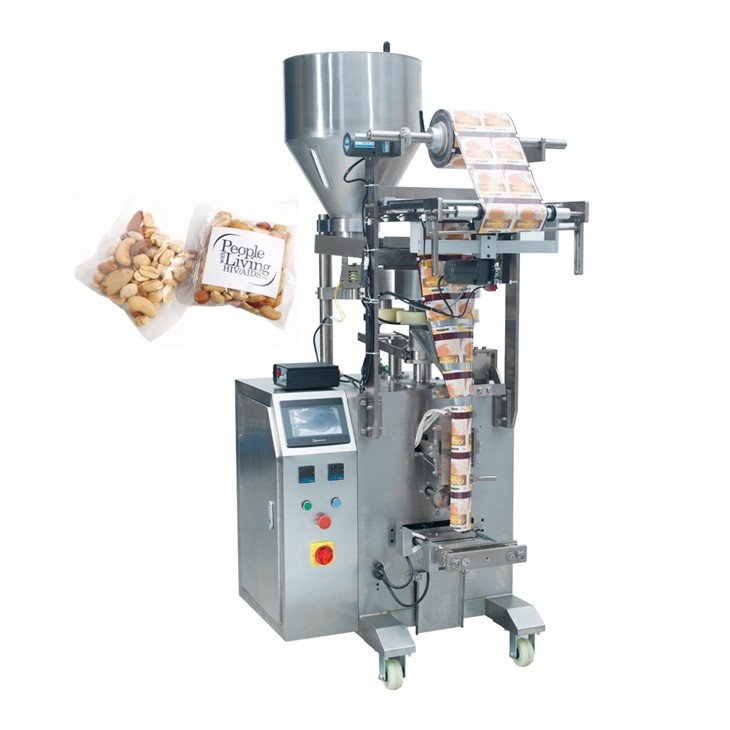

The Automatic Vertical Filling Packaging Machine for Nuts can be used for paper-plastic composite type, plastic-plastic composite type, plastic-steel composite type, PE composite type, etc. The loss of packaging materials is low, the packaging bags with good prefabricated components are used, the packaging bag pattern design is perfect, and the sealing quality is good, and then improve the commodity level. It is suitable for food weighing, automatic quality packaging of mixed and sub-packaging.
Features
The unit of our Automatic Vertical Filling Packaging Machine for Nuts is composed of a 5000D/5000B/7300B/1100 vertical filling and packaging machine, a combination scale (or CJS2000-F weighing machine) and a DT2 vertical bucket elevator, which integrates weighing, bag making, hemming, filling, sealing, printing, punching, counting in one, using servo motor synchronous belt to pull the film. The control components are all international famous brand products, and the performance is possible. The horizontal and vertical seals are pneumatic, and the action is stable and reliable. The advanced design ensures that the machine is very convenient to adjust, operate and maintain.
Specifications
(We have several Models. Just Tell us Weight or Bag Size. We can customize the suitable one for you according to your requiredment.)
Machine model: | 320 | 380 |
Film width: | Max.320mm | Max.380mm |
Bag length: | 60-200mm | 60-280mm |
Bag width: | 50-150mm | 60-180mm |
Film diameter： | Max.300mm | Max.300mm |
film thickness: | 0.03-0.08mm | 0.03-0.08mm |
Packing speed: | 20-50bag/minute | 20-45bag/minute |
Power supply: | 220V,50/60HZ,2.2KW | 220V,50/60HZ,2.5KW |
MachineSize: | (L)970×(W)680×(H)1950mm | (L)1100×(W)800×(H)2150mm |
MachineWeight: | 300Kg | 350Kg |

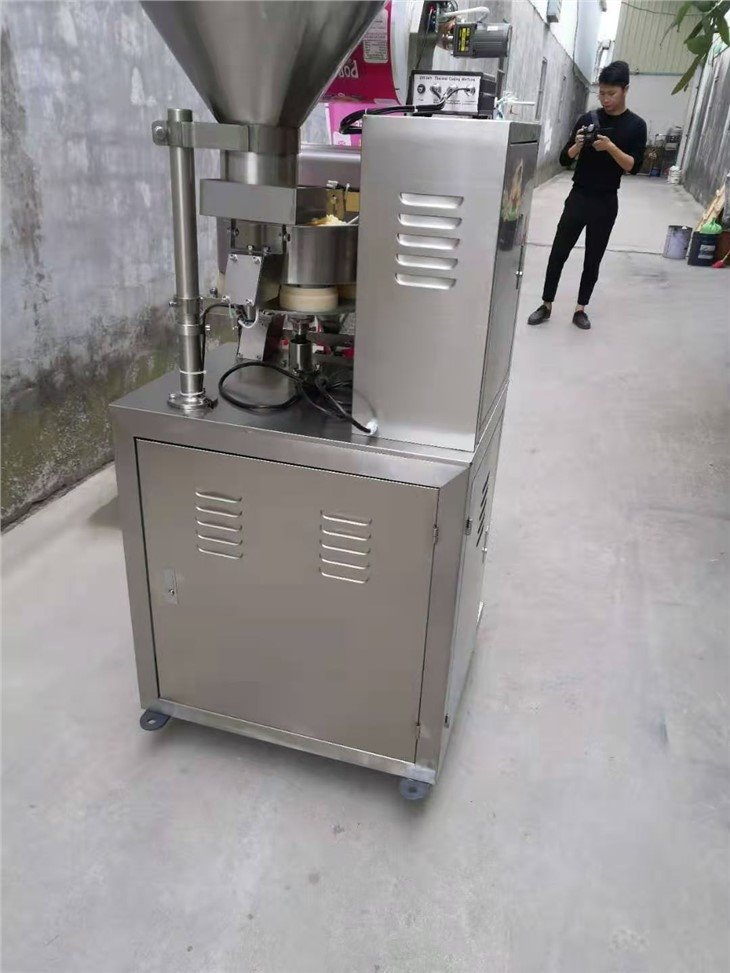

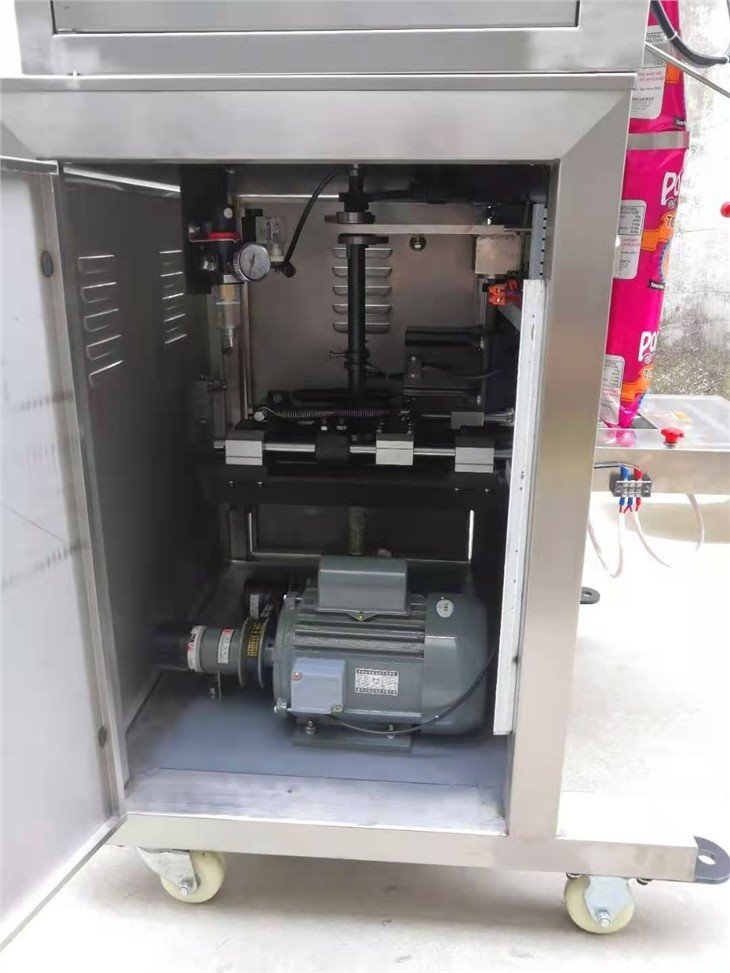

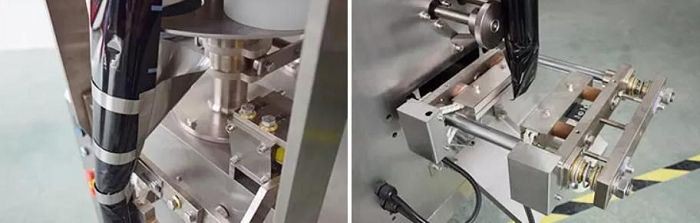

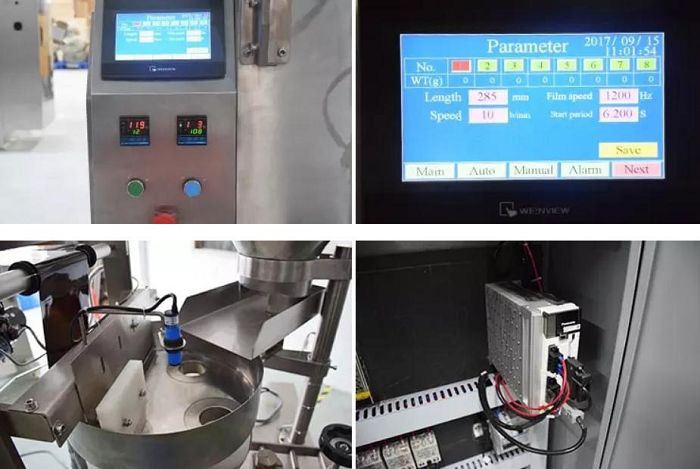

More product pictures:

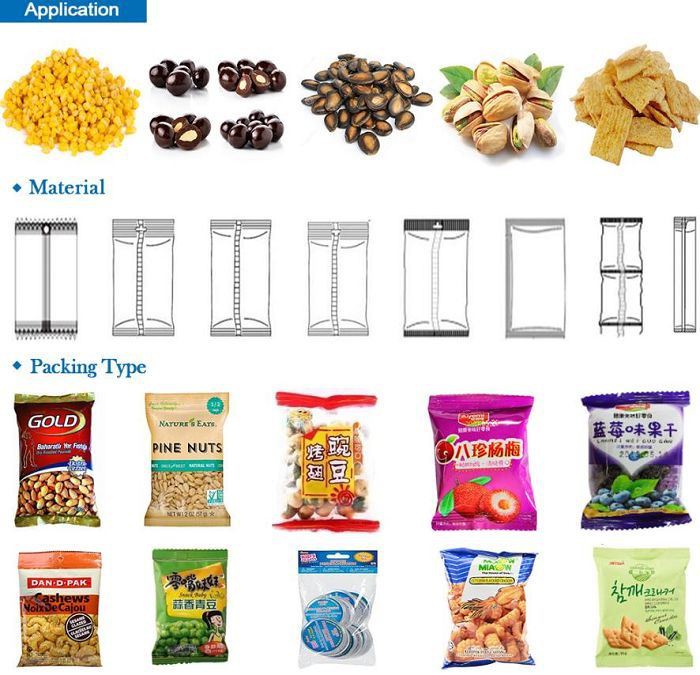

Application and packing type
It is applicable for the granule packaging and granule powder, like detergent powder, such as peanuts, walnuts, pistachios nuts,dried sea shrimp, powdered pork floss, coffee beans, seeds, rice, spice granule, peanuts, MSG,sugar, pistachio, Fish Feeds, glucose, Popcorn, crispy rice, Frozen French Fries, Corn Puff / Nik Naks, spirulina cereal, etc.
For various bag type: Pillow bag, 3 or 4 side bag, stick bag, etc.

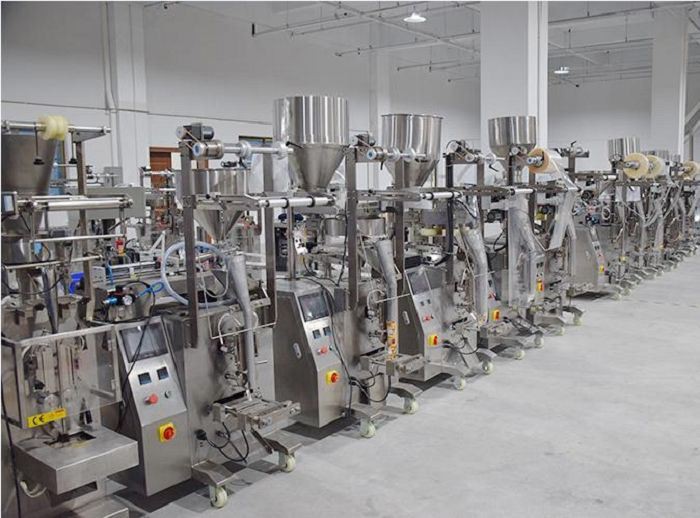

Our plant:
Packing:
Our service
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email; English software, user manual and the installation & debugging by our experienced technicians.
