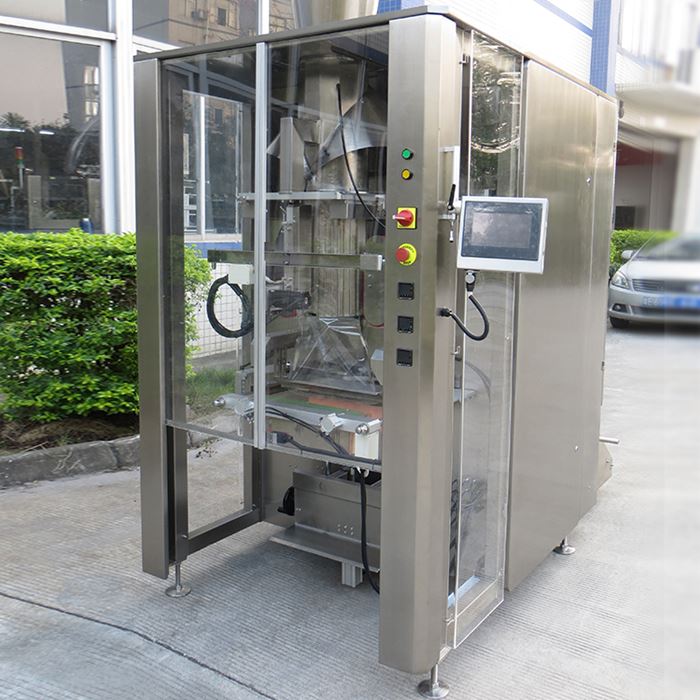

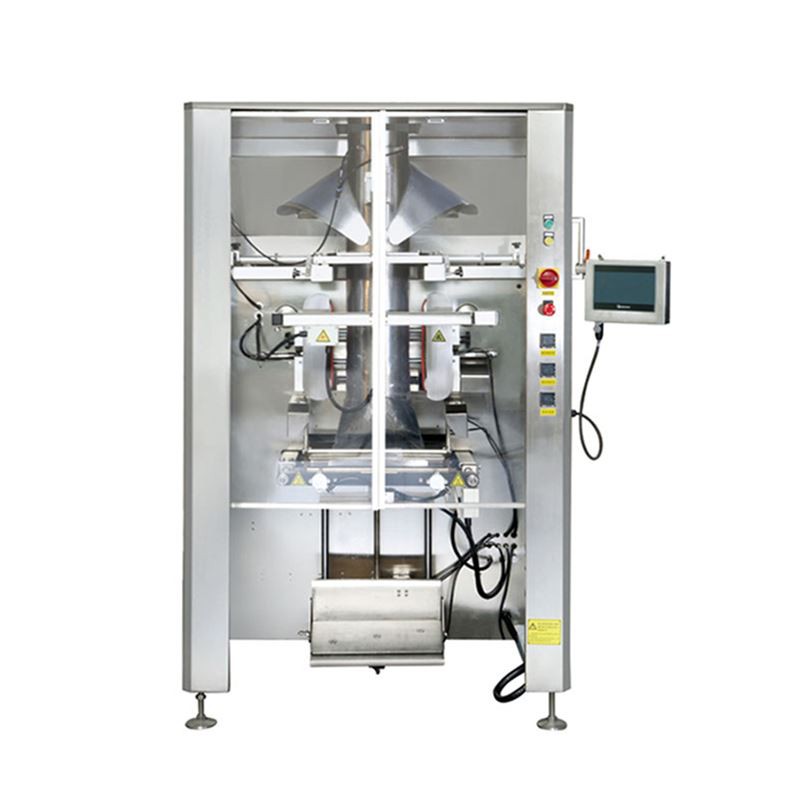

Big vertical packaging machine specification:
Type | BTW-420 | BTW-620 | BTW-520 |
Bag length | 50-300mm(L) | 100-480mm(L) | 80-400mm(L) |
Bag width Technical parameters: | 50-200mm(W) | 180-300mm(W) | 60-250mm(W) |
Max width of roll film | 420mm | 620mm | 520mm |
Packing speed | 40-50bags/min | 10-60bags/min | 10-600bags/min |
measuring range | 150-1200ml | 6000ml(Max) | 3000ml(Max) |
Air consumption | 0.65mpa | 0.65Mpa | 0.65Mpa |
Gas consumption | 0.3m³/min | 0.4m³/min | 0.4m³/min |
Power voltage | 220V | 220VAC/50HZ | 220VAC/50HZ |
Power | 2.2KW | 5KW | 4KW |
Dimension | L1080*W1300*H1400mm | L1500*W1270*H1600mm | L1500*W1170*H1500mm |
Net Weight | 600Kg | 900Kg | 800Kg |
Features:
1) operation from date printing, to film pulling, forming filling sealing, packing and output.
2) The film going shaft is full-covered now. And the design of it is different than before. At the beginning and the end of the shaft, they are all with brush to clean the film.
2)Film pulling structure is adopted independent controlling system, each side with one servo. Compares to before, we use single servo to control both sides of film pulling.
3)Horizontal sealing structure is more simple than before.
4) All the moving parts, such as the horizontal sealing structure. The slide bearing on it are all used the plastic bearing from Igus to make sure the using life of it longer and more clean, less noise.
5)The design of gusseted device is more synchronous than before.

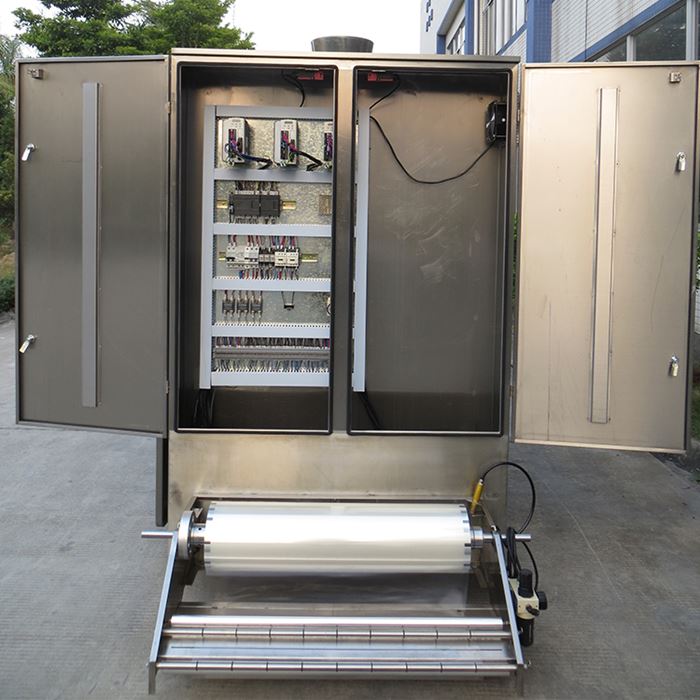

Electric Cabinet
The electrical cabinet is hided after the film going bracket. In this case, the machine looks more thin and simple than before. But on the other side, it is becoming longer than the normal.
The electrical box is waterproof.
Special bag former
This bag former is Olive type like, it is not round or square, but it is in the side round smoothly.
Special design from Bestar for the material to drop down without block.
Bottom support device
use support device to hold on the heavier bags for nice sealing horizontally.
Applications:
Big vertical packaging machine Bag type:
