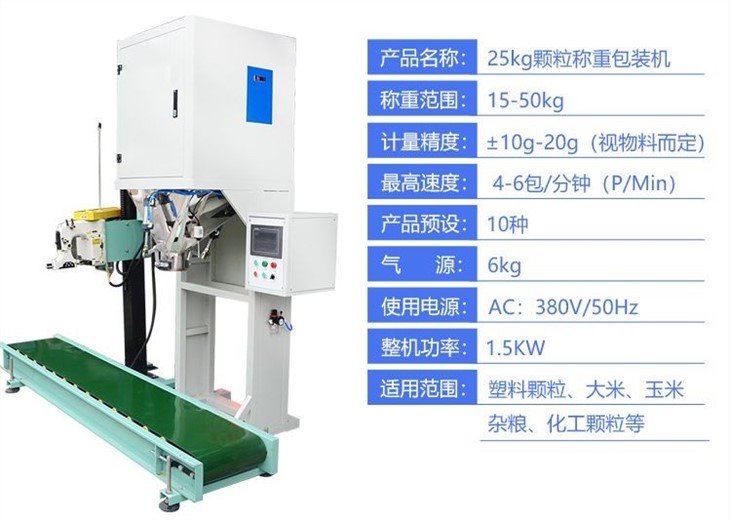

Large vertical weighing packing machine parameters:

1. The power supply requires a three-phase 380V,50hz.

2. The capacity of the weighing bucket is 2.0L (can be customized according to customer needs)

3. 7-inch color touch screen

4. Control system: Chip integrated control, stable performance, complete functions, and simple operation.

5. Packing weight: 15-50kg

6. Packing accuracy: ±1%

7. Speed: 4-6 bag/min

8. Machine power: 4KW

9. Whole machine weight: 400KG

10. Machine volume: 900*1000*1900

11. model: BT-K1

Product Information

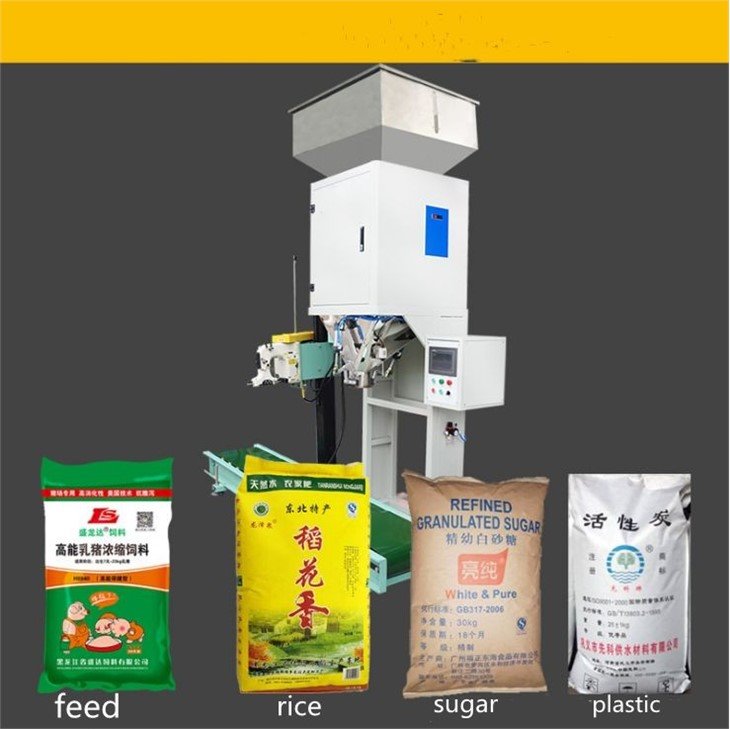

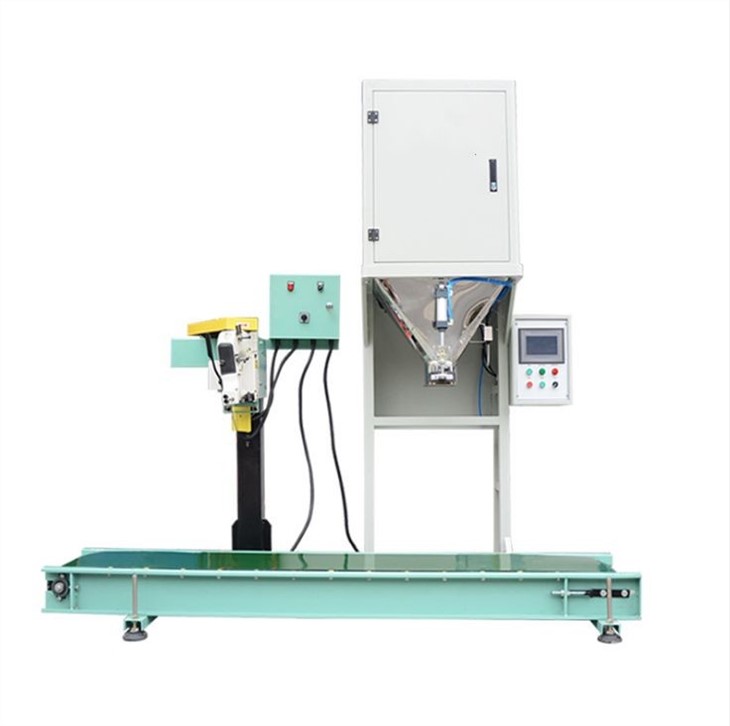

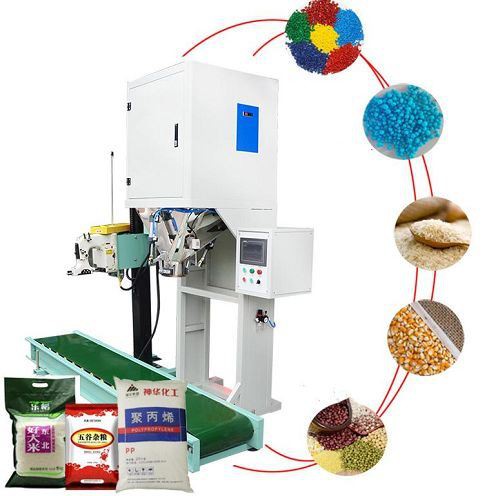

This 25kg Large Weighing Packaging Machine for Plastic Particles is mainly composed of a belt feeder, self-unloading weighing hopper, bag collecting funnel, electric control device, and other components with good performance. When weighing products, the automatic weighing and packaging machine's electronic control unit regulates the coarse and fine feeding of the feeder based on the load change of the sensor. The feeder stops feeding and delivers a signal to unload the material when the predetermined quality is reached. Our practical operation is relatively simple, and the packing speed and precision easily satisfy the requirements, making it a multi-discipline automatic packaging machine.

Large vertical weighing packing machine features:

1) A linear structure with a simple structure that is straightforward to install and maintain.

2) In pneumatic parts, electric parts, and operation parts, we use advanced world-renowned brand components.

3) Operating at a high level of automation and intellectualization, with little pollution.

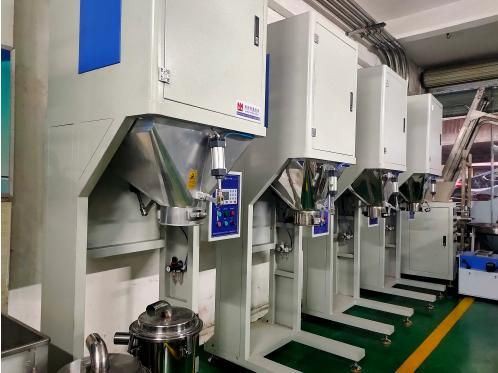

Plant:
